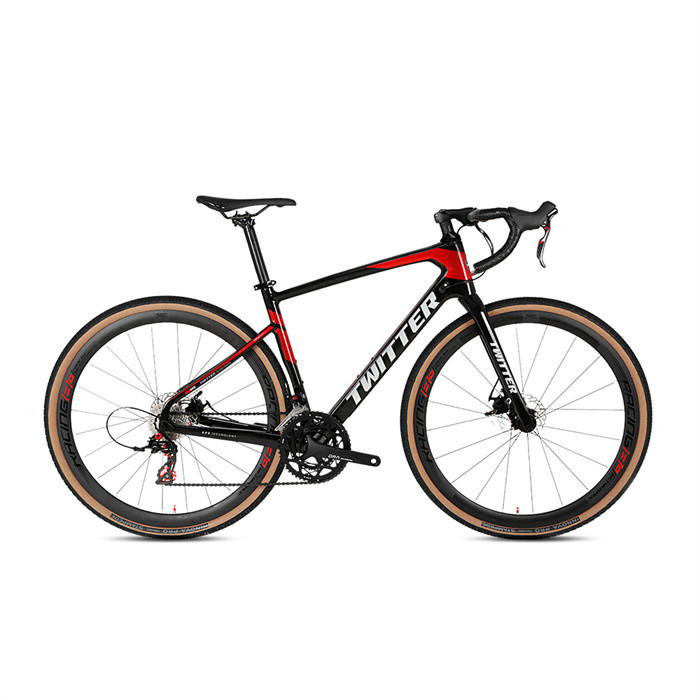

24 Speed 700C Mountain Bike For Gravel Grinder High Modulus Carbon
Place of Origin | CHINA |
---|---|
Brand Name | |
Certification | CE RoHS REACH ISO9001 |
Model Number | GRAVEL RETROSPEC(SENSAH)-24S |
Minimum Order Quantity | 10PC |
Price | Negotiable |
Packaging Details | 1.Foam plastic packaging,carton packaging outside.2.Size: 140cm*75cm*20cm.One bike into per carton.3.Container size:290-296pcs into a 40HQ container.120-125pcs into a 20GP container. |
Delivery Time | 7-15 working days |
Payment Terms | T/T, L/C, D/A, D/P, T/T, Western Union, alipay |
Supply Ability | 30000pc per month |
Frame Material | High Modulus Carbon Fiber | Size | 45cm / 48cm / 51cm / 54cm |
---|---|---|---|
Color | Red / Black / BlackRed / BlackSilver / BlackYellow / DarkGray / CementGray / Blue / Yellow, Holographic Color(Black / Silver / Black / Yellow) | Finish | Gloss,UV Colorful Decals |
Process | XC,EPS,Inner-Cable | Derailleur | RETROSPEC(SENSAH)-24S, Carbon Handle |
Brake | Zoom,flat-mount&cable Pull Hydr(metal Radiator)+PRO Float Disc 160/140 | Wheels Material | Alu Alloy |
Tire | 700*40C | ||
High Light | 51cm 700C mountain bike for gravel grinder,51cm 24 Speed mountain bike for gravel,51cm 24 Speed 48cm frame bike |
Inner Cable Carbon Disc Brake Gravel Road Bike Racing Bicycle 24 speed 700C
Bike Model | GRAVEL |
ConfRev | RS-24S |
Wheel Size | 700C |
Frame Height | 45cm / 48cm / 51cm / 54cm |
Bike Color | Red / Black / BlackRed / BlackYellow / DarkGray / CementGray / Blue / Yellow, Holographic color(Black / Silver / Black / Yellow) |
Net Weight | 8.5KG |
Frame | GRAVEL(disc&thru-axle), high modulus Carbon Fiber,XC,EPS,700*40C,Inner-Cable,Gloss,UV colorful decals |
Handelbar Sets | TW, Alu alloy,Matte&water decals,Handlebar 31.8×400,Stem 90,Seat post 31.6×350mm |
Fork | GRAVEL, high modulus Carbon Fiber,700C,UV decals, disc&thru-axle 12×100mm |
Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
Washer | Carbon 3K, 3×28.6×10mm |
Derailleur Handle | RETROSPEC(SENSAH)-24S, carbon handle |
Front Derailleur | RETROSPEC(SENSAH) |
Rear Derailleur | RETROSPEC(SENSAH), carbon leg&Ceramic |
Cranksets | RS-DRA, Alu alloy cnc,Hollow 34-50T |
Cassettes | SUGEK-12S, 11-30T |
Chain | SUMC-12S |
Brake | RS,flat-mount&cable pull Hydr(metal radiator)+PRO float disc 140/140 |
Hubs | RS, Alu alloy,4-sealed Bearings,Slotted,F20*R24 holes,disc&thru-axle F12×100_R12×142mm |
Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C |
Spoke | SHUNJIU, Flat 14G,bend head |
Tyre | INNOVA, 700*40C, Skin-color edge |
size | A | B | RC | D | E | FC | G | H | I | J | K | L | M | WB |
450 | 450 | 73.5° | 420 | 547.6 | 70 | 594.9 | 390 | 130 | 539.9 | 377.7 | 72° | 55 | 571.1 | 1005 |
480 | 480 | 73.5° | 420 | 568.5 | 70 | 600.8 | 390 | 150 | 550.3 | 381.9 | 7.5° | 55 | 592.9 | 1011 |
510 | 510 | 73° | 420 | 589.5 | 70 | 608.8 | 390 | 170 | 568.6 | 388.4 | 73° | 55 | 616.4 | 1019 |
540 | 540 | 73° | 420 | 610.5 | 70 | 628.7 | 390 | 190 | 593.9 | 407.3 | 73.5° | 55 | 638.4 | 1039 |

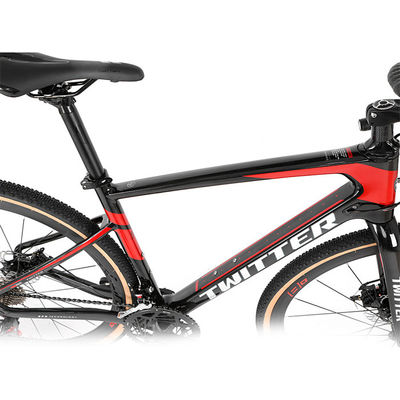

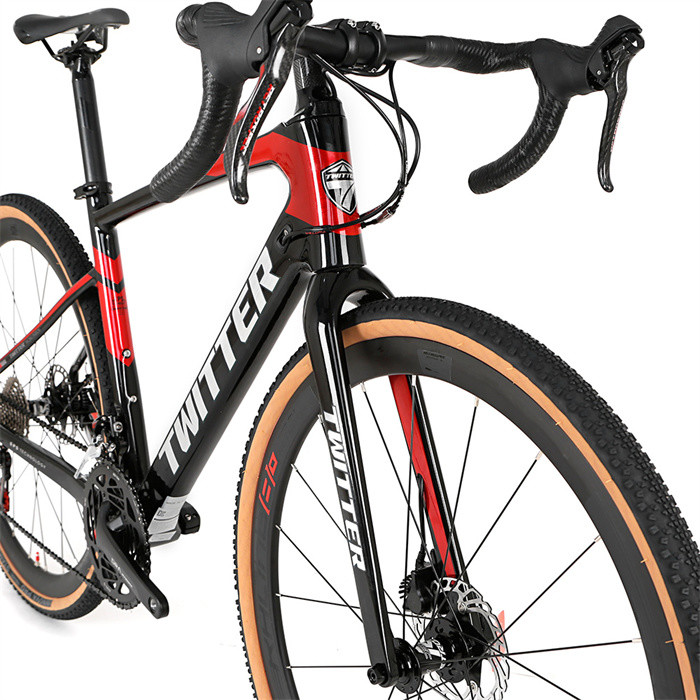

Carbon Fiber Road Bike Frame Features
1. Internal cable routing system, easy for cables slip through,
2. Tapered head tube design, together with the tapered and straight fork design, which offers a better stiffness for steering and acceleration.
3. Strong chain stay and seat stay design, which offers super stiffness and strength for racing
4. SHIMANO& SRAM groupset available too
5. Customized frame service, colorful, Aero design
Handlebar: TW, Alu alloy,Matte&water decals,Handlebar 31.8×400,Stem 90,Seat post 31.6×350mm
Crankset: RS-DRA, Alu alloy cnc,Hollow 34-50T
Why Chose Us
- Manufacturing Factory
- Logo customized
- CE, Rohs, other certificates
- Lifelong aftersales tracking
- Stable supply and fast delivery
- Customized packages
- OEM manufactured and popular design
Rear Derailleur:RETROSPEC(SENSAH), carbon leg&Ceramic
TWITTER Brand culture
Business philosophy: based on service, quality for survival, science and technology for development, innovation to win the market, integrity to win respect, Service tenet: quality first, customer first, efficient service and common development
After-Sales service
1.12 hours /day 6 days /week on-line service.
2. Professional technician and engineer service.
3. Free instructions of driving or riding.
4. Spare parts and components support.
5. Replacement or repair if it is under warranty.
