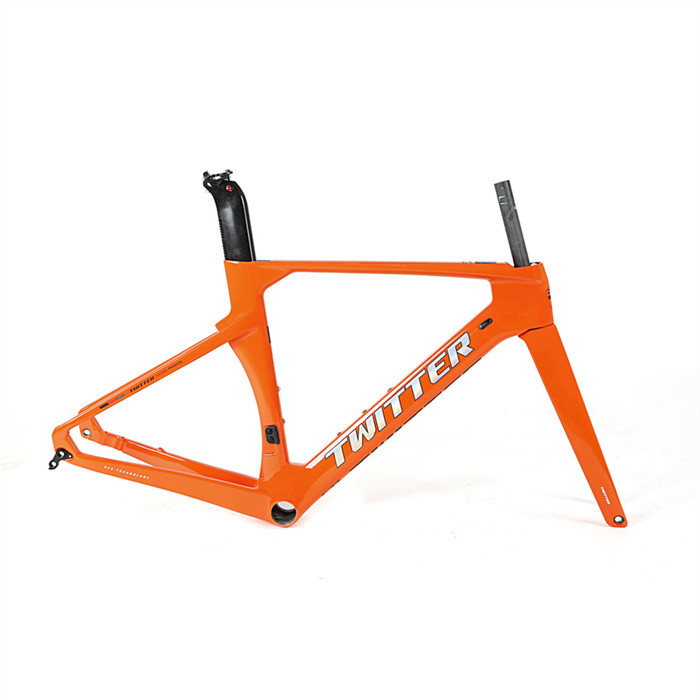

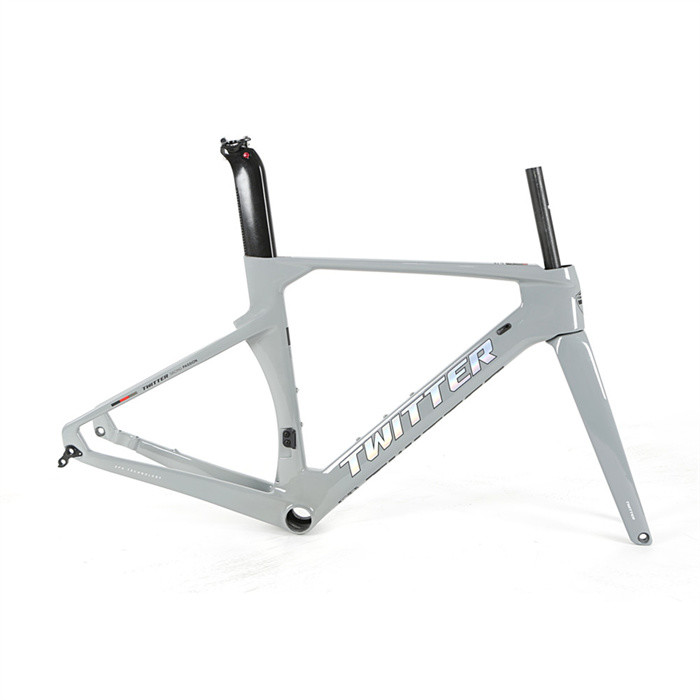

ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike
| Place of Origin | CHINA |
|---|---|
| Brand Name | |
| Certification | CE RoHS REACH ISO9001 |
| Model Number | R10 disc frame |
| Minimum Order Quantity | 10PC |
| Price | Negotiable |
| Packaging Details | 1.Foam plastic packaging,carton packaging outside.2.Size: 140cm*75cm*20cm.One bike into per carton.3.Container size:290-296pcs into a 40HQ container.120-125pcs into a 20GP container. |
| Delivery Time | 7-15 working days |
| Payment Terms | T/T, L/C, D/A, D/P, T/T, Western Union, alipay |
| Supply Ability | 30000pc per month |
Product Details
| Frame | R10 Disc Brake | Size | 46cm / 48cm / 50cm / 52cm / 54cm |
|---|---|---|---|
| Color | Red Black DarkGray CementGray Silver Orange Blue Yellow White | For BB | BB86*46 Pressed |
| Head Tube | 52*52&Cover, | Process | Aero-design, EPS, Inner-Cables, Gloss,UV Laser Colorful Decals |
| Weight | Frame 1.39KG, Fork 0.53KG, Seat Post 0.25KG | Material | High Modulus Carbon Fiber(T800 Mix) |
| OEM/ODM | Acceptable | Feature | Hanging Fixed To FD |
| High Light | 46cm R10 disc Carbon Road Bike Frame,46cm Carbon Road Bike Frame,ISO9001 gravel bike carbon frame |
||
Product Description
Thru Axle Carbon Disc Road Bike Frame Full Hidden Cable With Carbon Fork
| size | A | B | C | D | E | F | G | H | I | J | K |
| BB Center to Top of Seat Tube | Effective Top Tube Horizontal | BB offset | Chainstay Length | Seat angle | Head Angle | Front Center | Head Tube Length | Fork Offset | Reach | Stack | |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | |
| XS - 46cm | 450 | 505 | -72 | 410 | 75 | 71.5 | 577 | 100 | 55 | 370 | 505 |
| S - 48cm | 480 | 520 | -72 | 410 | 74.5 | 72 | 584 | 115 | 55 | 375 | 521 |
| M - 50cm | 500 | 535 | -72 | 410 | 74 | 72.5 | 590 | 135 | 55 | 380 | 542 |
| L - 52cm | 520 | 550 | -72 | 410 | 73.5 | 73 | 595 | 155 | 55 | 384 | 563 |
| XL - 54cm | 540 | 565 | -72 | 410 | 73.2 | 73.5 | 602 | 175 | 55 | 389 | 584 |
Brand:TWITTER
Model/Name:R10-disc carbon road Frame+Fork+Seat post+Headsets+Lever
Frame Size(Height):46cm / 48cm / 50cm / 52cm / 54cm
Material:High modulus Carbon fiber(T800 mix)
ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
Process:Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals
Weight:Frame 1.39KG, Fork 0.53KG, Seat post 0.25KG
R10-disc carbon road Frame+Fork+Seat post+Headsets+Lever
Frame specification:
Customized Service
1. If you design by yourself, it is better if could provide us your design.
Or we could design for you according to your requirement.
2. MOQ is 300pcs/model
3. Customized logo can be accepted.
4. Color combination is available
After-Sales Service
1. Frame and fork: 1 year's warranty
2. AII the electric components (including the battery); 2 year’s warranty
3. Mechanical parts: 1/2 year's warranty
Feedback
Your satisfaction and positive feedback will be our best return for serving you.
If you feel satisfied with our products and services, please leave us your positive feedback. Your feedback will be highly appreciated and will help us to serve you better. Thank you!If you are not happy with our products and services, please contact us before you submit a negative feedback. Once there is a problem reported, all of our staffs will try best to help you out of the issueoccurred.
Carbon fork
Why Chose Us
- Factory price
- Logo customized
- Customized packages
- A lots of color for your choice
- OEM manufactured and popular design
- CE, SGS, and other certificates
- Lifelong aftersales tracking
- Stable supply and fast delivery
Inner-Cables, Gloss,UV laser colorful decals
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. what can you buy from us?
Bicycle, Bicycle-parts, E-bike
3. why should you buy from us not from other suppliers?
Our company has 10 years experiences in R & D and manufacturing for High-end bicycles, Electric bicycle and related products.
