OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle

Place of Origin Shenzhen CHINA
Brand Name TWITTER
Certification CE, RoHS, REACH,ISO9001
Model Number STORM2.0 Thru axle
Minimum Order Quantity 50PC
Price Negotiable
Packaging Details Carton Size:105CM*52CM*23CM and Container Quantity:20GP-400pcs
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 10000pc per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand TWITTER/OEM Model/Name STORM2.0 Carbon MTB Frame
Frame Size(Height) 29(27.5)×15" / 17" / 19" Applicable Wheel Size 29"/ 27"
Material High Modulus Carbon Fiber(T800) Weight About 1.19KG (29*17")
BB 92*41 Pressed Warranty 2 Years
Process EPS,OEM O.L.D Thru Axle 12*148(142)mm
Highlight

RoHS 142 Thru Axle frame mtb full suspension

,

OEM carbon frame mtb 27.5

,

OEM RoHS carbon fiber frameset

Leave a Message
Product Description

Carbon Mtb Bicycles Frame 27.5 29er Storm2.0 OEM Bike Parts With 142 Thru Axle

Model/Name STORM2.0 carbon MTB frame
Size 29(27.5)×15" / 17" / 19"
Material High modulus Carbon fiber(T800)
ASSY Size Head tube 42*52+BB92*41 Pressed+Seat post 31.6+Clamp 34.9, O.L.D 135mm QR or Thru axle 12*148(142)mm, Can install pull forward FD
Color Matte / Gloss
Process XC, EPS, Inner-Cables, Hidden brake mount post, Gloss or Matte
Weight about 1.19KG (29*17")
Warranty 2 Years



Brand TWITTER / OEM
Model STORM2.0 carbon MTB frame
Name Carbon mtb Frame
Wheel Size 29"/27.5"
Frame size 15"/17"/ 19"
Material High modulus Carbon fiber(T800)
Seat post size 31.6mm
Clamp size 34.9mm
Head tube size 42*52mm Tapered
BB width BB92*41mm Pressed
O.L.D Thru axle 12*148(142)mm
Apply to tyre max 27.5*2.0&29*2.35 tyre
Brake Disc Brake
Cable Routing Internal
Compatible with Fork Tapered
Level XC
Weight about about 1.19KG (29*17")
OEM Available

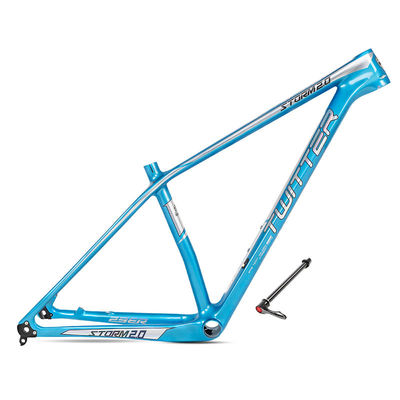

STORM2.0 carbon mtb frame angle show:
OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle 0OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle 1



                                                            Frame size with Rider Height
Frame size 27.5"*15" 27.5"*17" 27.5"*19" 29"*15" 29"*17" 29"*19"
Rider Height 155-170cm 165-180cm 175-190cm 165-180cm 175-190cm 185-205cm

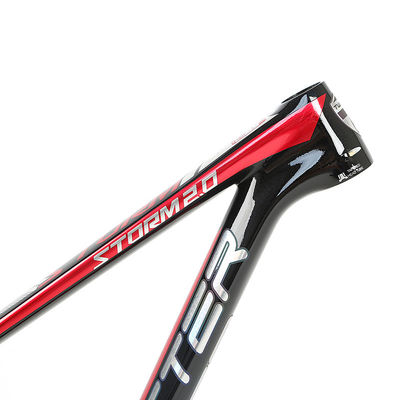

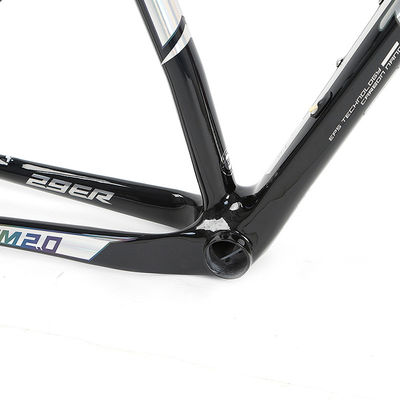

STORM2.0 carbon mtb frame details

OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle 2

EPS PROCESS- Ethyl Poly Styrene

Advantages

1. Strong carbon fiber shell,durable frame,strong and light weight.

2. the finished frame has better hardness,toughness,strength to

weight ratio,tightness and other qualities.

3. Significantly improve the stability and smoothness of the lamination

and joint between the inner cavity of the frame.

4. Greatly reduce the excessive concentration of internal stress of

the frame, thelength of the finished frame life,stable quality

5. The finished frame has a smooth appearance.





OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle 3OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle 4OEM Carbon Frame MTB 27.5 Full Suspension , Carbon Fiber Frameset With 142 Thru Axle 5

Company Introduction
>1. Twitter Bicycle factory is located in Longhua Shenzhen and it is an enterprise focusing on the design and development,production and sales for middle-to-high range bicycles, which has more than 100 employees and over 5000 square meters of factory.
>2. The company adheres to excellent design, High-quality products, perfect service, pragmatic prices to meet customer needs and continue tracking of domestic and foreign advanced technology, and strengthen the development of new products.
>3. We main lining bikes(Road bike,mountain bike,folding bike,e bike,children bike and etc) and accessories(bike frame,fork,wheels and etc).Exported products to over the world.
>4. There are 40% in the Southest of Asia markets;10% in the America markets;10% in the Europe markets;10% in the the Middle East and etc.



FAQ
1. Q: Can I get sample and how long will it take?
A: Yes. We can supply sample. And you need to pay for the sample and courier. About 10days after receiving the payment, we will send it out.

2. Q: What's the MOQ?
A: Our MOQ is 50 pcs.

3. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. We are very welcome.

4. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.

5. Q: What's the delivery time?
A: It will take about 25-35 days to finish an order. But the exact time is according to actual situation.

6. Q: What is the payment terms?
A: T/T, L/C and so on.(Contact with customer our service.)

7. Q: How does your factory carry out quality control?
A: We attach great importance to quality control.Every part of our products has its own QC.

8. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
