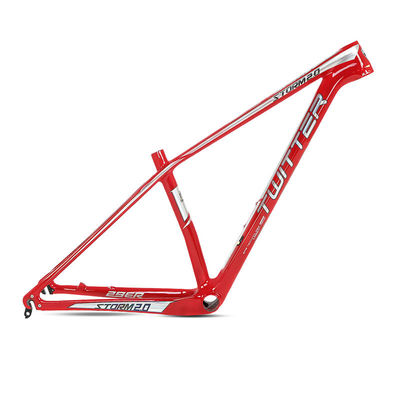

Storm 2.0 27.5er Carbon Fiber MTB Frame Red With 142 Thru Axle
| Place of Origin | Shenzhen CHINA |
|---|---|
| Brand Name | |
| Certification | CE, RoHS, REACH,ISO9001 |
| Model Number | STORM2.0 QR |
| Minimum Order Quantity | 50PC |
| Price | Negotiable |
| Packaging Details | Carton Size:105CM*52CM*23CM and Container Quantity:20GP-400pcs |
| Delivery Time | 7-15 working days |
| Payment Terms | T/T |
| Supply Ability | 10000pc per month |
Product Details
| Brand | TWITTER/OEM | Model/Name | STORM2.0 Carbon MTB Frame |
|---|---|---|---|
| Frame Size(Height) | 29(27.5)×15" / 17" / 19" | Applicable Wheel Size | 29"/ 27" |
| Material | High Modulus Carbon Fiber(T800) | Weight | About 1.19KG (29*17") |
| BB | 92*41 Pressed | Warranty | 2 Years |
| Head Tube | 42*52 | O.L.D | 135mm QR |
| High Light | 27.5er 142 Thru Axle,1.19KG 27.5er Carbon Fiber MTB Frame,1.19KG Storm 2.0 27.5 er frame |
||
Product Description
Carbon Mtb Bicycles Frame 27.5 29er Storm2.0 OEM Bike Parts With 142 Thru Axle
| Model/Name | STORM2.0 carbon MTB frame |
| Size | 29(27.5)×15" / 17" / 19" |
| Material | High modulus Carbon fiber(T800) |
| ASSY Size | Head tube 42*52+BB92*41 Pressed+Seat post 31.6+Clamp 34.9, O.L.D 135mm QR or Thru axle 12*148(142)mm, Can install pull forward FD |
| Color | Matte / Gloss |
| Process | XC, EPS, Inner-Cables, Hidden brake mount post, Gloss or Matte |
| Weight | about 1.19KG (29*17") |
| Warranty | 2 Years |
STORM2.0 carbon mtb frame angle show:
| Frame size with Rider Height | ||||||
| Frame size | 27.5"*15" | 27.5"*17" | 27.5"*19" | 29"*15" | 29"*17" | 29"*19" |
| Rider Height | 155-170cm | 165-180cm | 175-190cm | 165-180cm | 175-190cm | 185-205cm |
STORM2.0 carbon mtb frame colors:

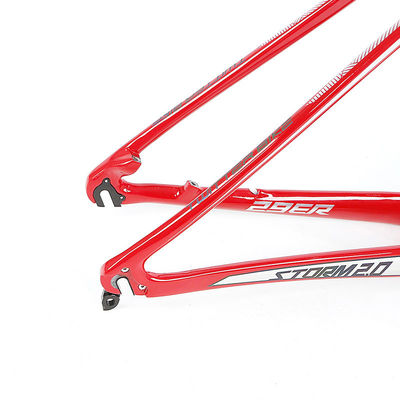

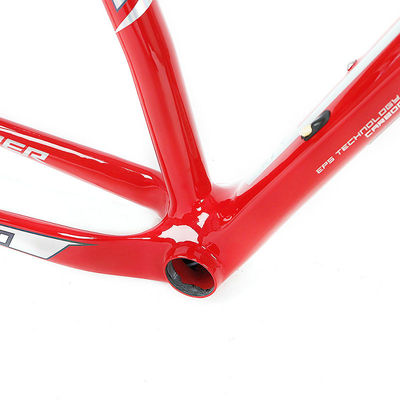

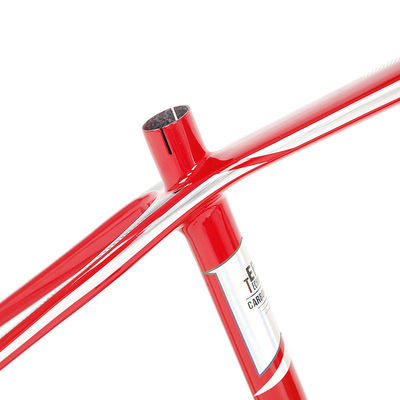

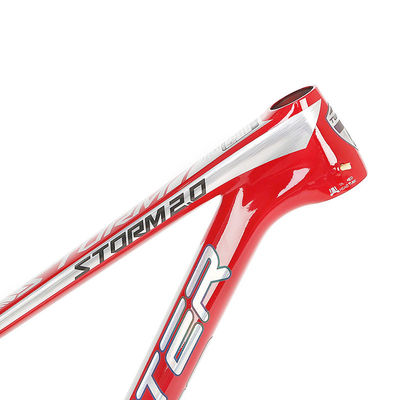

STORM2.0 carbon mtb frame details
EPS PROCESS- Ethyl Poly Styrene
Advantages
1. Strong carbon fiber shell,durable frame,strong and light weight.
2. the finished frame has better hardness,toughness,strength to
weight ratio,tightness and other qualities.
3. Significantly improve the stability and smoothness of the lamination
and joint between the inner cavity of the frame.
4. Greatly reduce the excessive concentration of internal stress of
the frame, thelength of the finished frame life,stable quality
5. The finished frame has a smooth appearance.
After Sales Service
Warm tips:
1. Timely & Professional after-sales service !
2. All products with warranty.Your feedback is very important to us! Please do not leave any bad feedback! any question, you can contact us first, then we will treat well do our best as soon as possible!
3. Please trust us will solve all problem!
Our Services & Strength
1. Bicycle frame made of high quality Carbon Fiber material.All carbon bikes used toray carbon T800/T900/T1000 material with crafted EPS technology.
2. We can offer very good quality with nice price.The parts which have high requirement about the size will be precisely
machining, finally all the parts will be assembled by manual and inspected strictly in high standard requirement.
Our Advantages
1. Competitive Factory Price !
2. Strict quality assurance !
3. Timely & Professional after-sales service !
Warranty
European quality level
1) Quality is our number 1 focus for the entire team.
2) The design, injection, QA & packaging are all done in-house for efficiency and to standardized a high level of quality control.
3) Warranty is 5 years under normal using (not manmade damage).
4) All of carbon bike frames will be tested before shipping.
5) If you received some not working can show the pictures to us or send it back to us to repair or replace.
