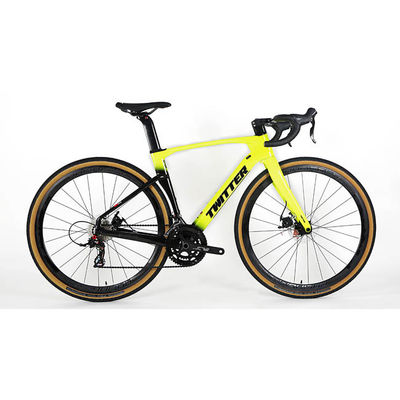

9.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire

Place of Origin China
Brand Name TWITTER
Certification CE,RoHs, ISO9001
Model Number GRAVEL V2
Minimum Order Quantity 1
Price Negotiable
Packaging Details 140*75*20CM/CTN 1PCS into 1CTN 120-125CTN/20GP Container 290-296CTN/40HQ Container
Delivery Time 7-15 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 30000pcs per month
Product Details
Product Name Carbon Fiber Gravel Bike Frame Carbon Fiber,XC,EPS,Inner-Cable
Derailleur Handle RETROSPEC(SENSAH)-24S, Carbon Handle Front Derailleur RETROSPEC(SENSAH)
Rear Derailleur RETROSPEC(SENSAH)-12S Cranksets RETROSPEC, Alu Alloy,Hollow,34-50T
Cassettes SUNSHINE-12S, 11-30T Tire INNOVA, 700*40C, Skin-color Edge
Brake ZOOM, Flat-mount&cable Pull Hydr+PRO Float Disc 160/140 Size 45cm / 48cm / 51cm / 54cm
High Light

700x40C RoHs Carbon Fiber Gravel Bike

,

9.7KG 700x40C Carbon Fiber Gravel Bike

,

700x40C carbon fiber hybrid bike

Leave a Message
Product Description

Carbon Fiber Gravel Hybrid Road Bike TWITTER Gravel-V2 Wheel Size 700*40C



What are the features of a TWITTER carbon road bike?



· Very lightweight frame, wheels and components.

· A drop (curled) handlebar, though some have a flat bar like a mountain bike.

· Narrow wheels and tires for high speed racing.

· A composite (carbon fiber) front fork.

· No front or rear suspension.

· Men's and women's styles and a wide range of sizes for optional.

· TWITTER developed Compact Road Design, which essentially saw the toptube sloping down from the headtube,

   thus making the frame’s front and rear triangles smaller. Genius.



Detail specification of Carbon fiber GRAVEL road bike:



Bike Model GRAVEL-V2
Wheel Size 700*40C
Frame Height 45cm / 48cm / 51cm / 54cm
Bike Color Black ( Red / DarkGray / CementGray / Silver / Orange / Blue / Yellow )/White Red
Net Weight 9.7KG
Frame GRAVEL-V2(disc&thru-axle 12×142), high modulus Carbon fiber,XC,EPS,Inner-Cable,Cut&Gloss+UV laser colorful decals
Handelbar Sets TW, high modulus Carbon fiber, Integrated Handlebar&Stem(420*90mm),UV embossing water decals,full Inner-Cables
Seat Post High modulus Carbon fiber,Aero-Racing
Fork GRAVEL-V2(disc&thru-axle 12×100), high modulus Carbon fiber,XC,700C,UV laser colorful decals
Head Sets TW, Alu alloy CNC with sealed-Bearings 52*52mm
Derailleur Handle RETROSPEC(SENSAH)-24S, carbon handle
Front Derailleur RETROSPEC(SENSAH)
Rear Derailleur RETROSPEC(SENSAH)-12S
Cranksets RETROSPEC, Alu alloy,Hollow,34-50T
Cassettes SUNSHINE-12S, 11-30T
Chain SUMC-12S
Brake ZOOM, flat-mount&cable pull Hydr+PRO float disc 160/140
Hubs RS, Alu alloy,4-sealed Bearings,Slotted,F24*R24 holes,Disc&thru-axle 12×F100_R142
Rim RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C
Spoke SHUNJIU,Circular 14G,Bend head
Tyre INNOVA, 700*40C, Skin-color edge

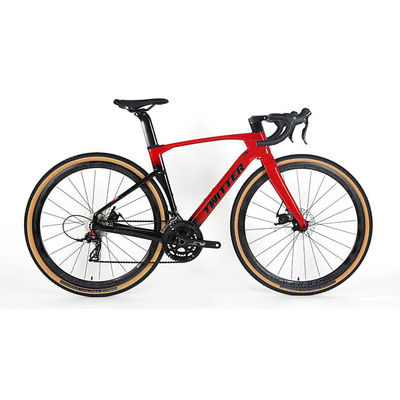

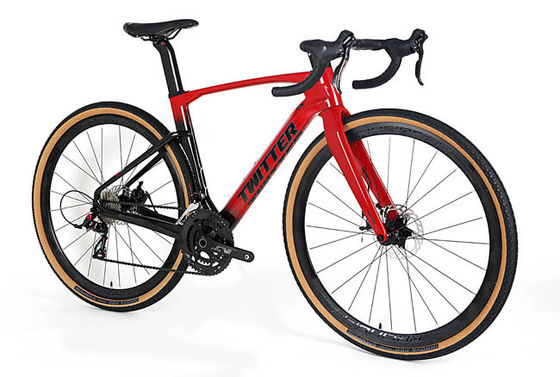

Different viewing angle of TWITTER GRAVEL-V2 Road bike

9.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 09.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 1

9.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 2

Size from XS to L meet almost all the riders' height.

9.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 3



size A B C D E F G H I J K L M
mm mm mm mm ° °   mm mm mm mm mm mm
XS - 45cm 450 505 363 408 74.3 71.2 74 100 55 505 572 969 265
S - 48cm 480 520 373 408 74.3 71.2 75 114 55 519 588 985 265
M - 51cm 510 538 388 408 74.3 71.2 76 130 55 533 607 1004 265
L - 54cm 540 550 394 408 74.3 71.2 77 150 55 552 620 1017 265
FRAME SIZE WITH RIDER HEIGHT
Frame size XS - 45cm S - 48cm M - 51cm L-54CM
Rider height 155-170cm 165-175cm 175-185CM 185-195CM



UV laser colorful decals on the frame, made your road bike more attractive, and more safe during riding in dark night.







9.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 49.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 59.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire 6
