CYCLONE Pro 700C Disc Brake Bike Frame 51cm Height Thru Axle

Place of Origin CHINA
Brand Name TWITTER
Certification CE RoHS REACH ISO9001
Model Number CYCLONEpro-Disc frame
Minimum Order Quantity 10PC
Price Negotiable
Packaging Details 1.Foam plastic packaging,carton packaging outside.2.Size: 105CM*52CM*22CM.2 pcs frames into per carton.3.Container size:1000pcs into a 40HQ container.400pcs into a 20GP container.
Delivery Time 7-15 working days
Payment Terms T/T, L/C, D/A, D/P, T/T, Western Union, alipay
Supply Ability 30000pc per month
Product Details
Frame All Cables Inner Routing Disc Brake Frame Size 45cm / 48cm / 51cm / 54cm
Color BlackRed Red WhiteRed Black TiGray CementGray Blue Yellow Orange BB Size BB86*46 Pressed
Head Tube 52*52&Cover, Item Carbon Road Frame+Fork+Seat Post+ Headsets+Cover&Washer +Lever+Handlebar Set
High Light

51cm disc brake bike frame

,

700C disc brake bike frame

,

51cm bike frame

Leave a Message
Product Description

Every Twitter road bike frame is designed to deliver best-in-class performance, from our fastest hand-built carbon race machines to our refined aluminum models. These are the lightweight, road-smoothing, aerodynamic road bikes that will carry you over the steepest climbs and keep you smiling on the descents. You'll feel the difference, from the first ride all the way to the podium.



Carbon Fiber Road Bike Frame specification:

Brand:TWITTER
Model/Name:CYCLONEpro-Disc carbon road Frame+Fork+Seat post+
Headsets+Cover&Washer +Lever+Handlebar set
Feature:All cables inner Routing
Frame Size(Height):45cm / 48cm / 51cm / 54cm
Material:High modulus Carbon fiber(T900 mix)
ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
Process:XC-Racing, EPS, Inner-Cables, Matte or Gloss or Holographic color paint, UV laser colorful decals
Weight:Frame 1.02KG, Fork 0.43KG, Seat post 0.19KG, Handlebar set 0.19KG



Gravel bikes let you explore beyond the beaten path and onto more rugged terrain like gravel logging roads and flowery dirt trails.Cyclonepro is a bike built for performance. Its driving precision, together with the SHIMANO system that cancels vibrations, guarantees unparalleled control of the vehicle. Perfect power transmission means that every watt unloaded on the pedals will get you closer to the finish line faster than your opponents. If you want to get to the top of your favorite sport, Cyclonepro is the perfect way to accompany you.



The carbon integrated cables inner routing used on Cyclonepro cancels the vibrations generated by the ground, guaranteeing a more homogeneous pedaling and the maintenance of the position more efficient and aerodynamic for longer, without compromising in terms of power transfer.



Details of EPS technology:Ethyl Poly Styrene

The mandrel made of a thermoplastic material made of polystyrene compound conforming to the inner diameter of the frame is used as the basis for the production of the frame. If the stability of the overall quality of the frame can be enhanced, the internal wrinkles are prevented to increase the rigidity. In the market's pursuit of a highly rigid ultra-light frame, this technology can greatly extend the life of the frame and improve its safety. In the production process, the carbon fiber layer is coated on the EPS, and the mandrel is pulled out after being stabilized by molding. If the technology of TPM (thermoplastic layer technology) can be further combined, the ultra-light frame can be maximized. Good security effect.

1. Strong carbon fiber shell, durable frame, strong and light weight.

2. The finished frame has better hardness, toughness,strength to weight ratio, tightness and other qualities.

3. Significantly improve the stability and smoothness of the lamination

and joint between the inner cavity of the frame.

4. Greatly reduce the excessive concentration of internal stress of the frame, the length of the finished frame life, stable quality

5. The finished frame has a smooth appearance.

Bicycle frame made of high quality carbon fiber T800/T900 Toray material, One-piece molding process, then processed by the world’s top T4/T6 heat treatment technology, the parts which have high requirement about the size will be precisely machining, finally all the parts will be assembled by manual and inspected strictly in high standard requirement to ensure each TWITTER is perfect.



size A B C D E F G H I J K
  BB Center to Top of Seat Tube Effective Top Tube Horizontal BB offset Chainstay Length Seat angle Head Angle Front Center Head Tube Length Fork Offset Reach Stack
  mm mm mm mm ° ° mm mm mm mm mm
XS - 45cm 450 505 -74 408 74.3 71.2 570 100 55 363 506
S - 48cm 480 520 -74 408 74.3 71.2 588 114 55 374 518
M - 51cm 510 538 -74 408 74.3 71.2 607 130 55 388 534
L - 54cm 540 550 -74 408 74.3 71.2 620 150 55 394 553

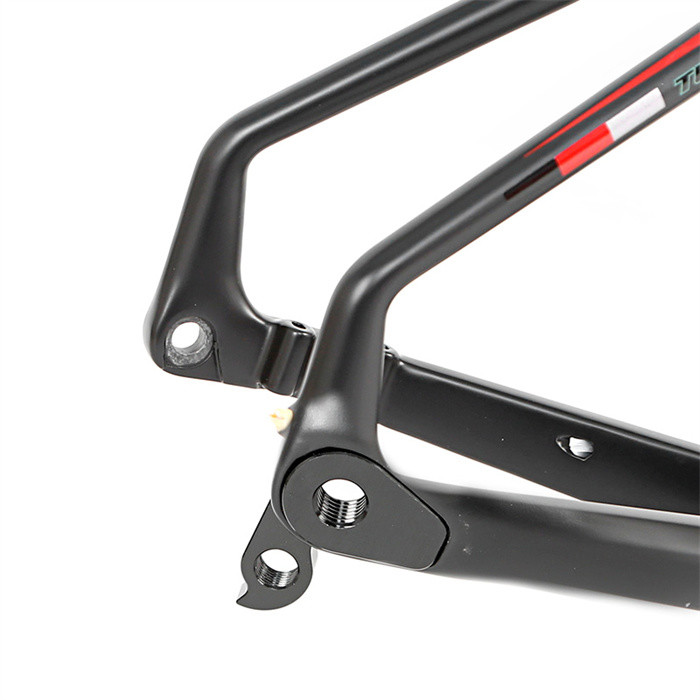

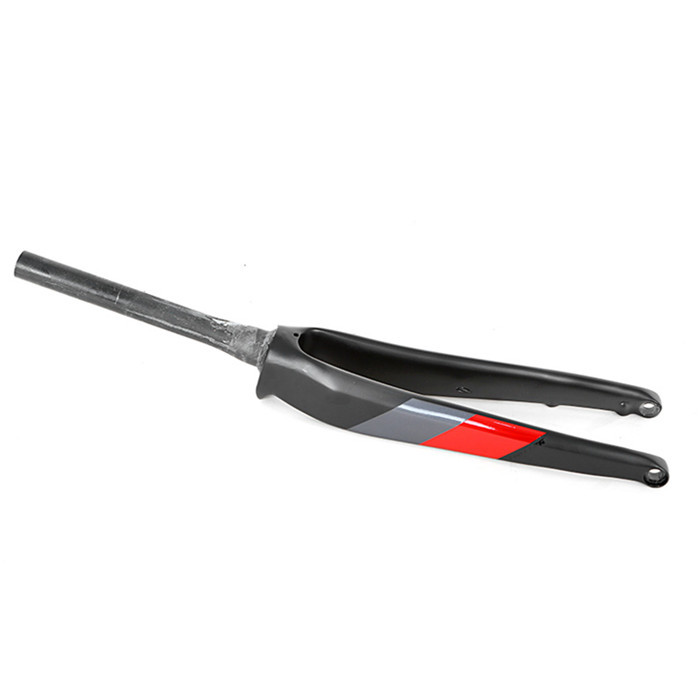

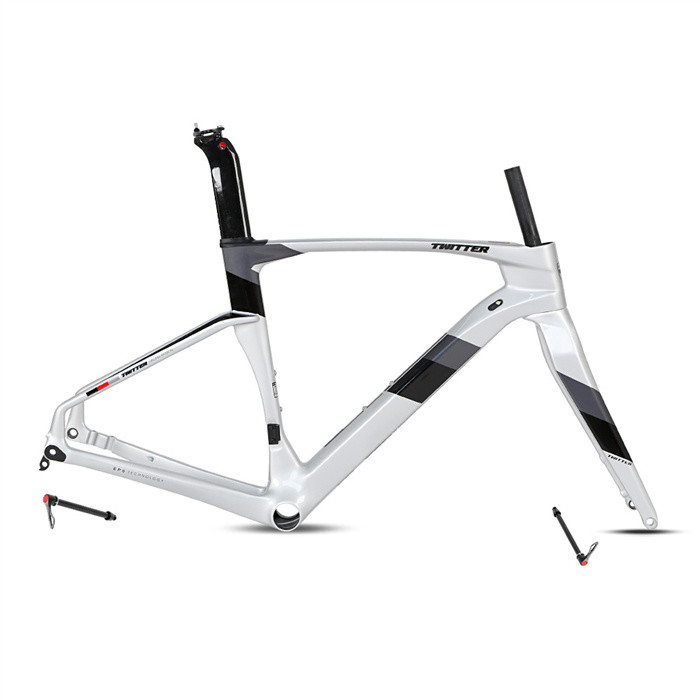

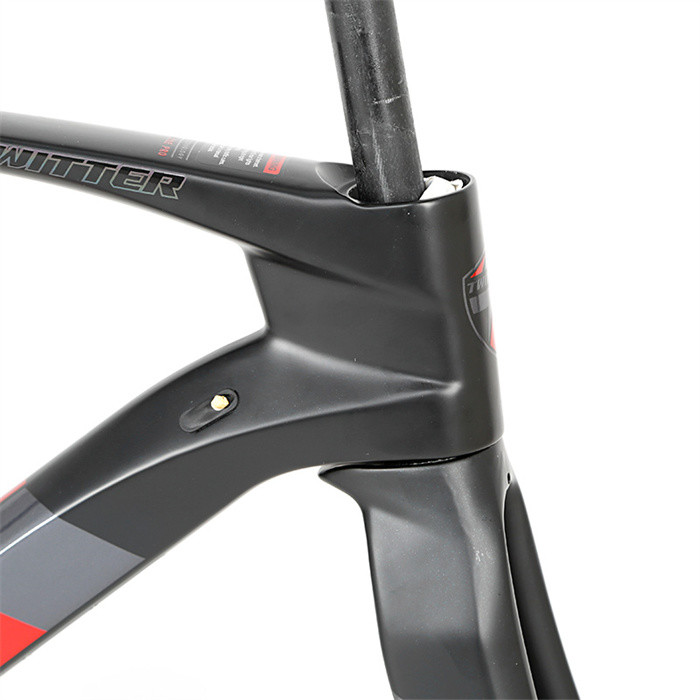

CYCLONE Pro 700C Disc Brake Bike Frame 51cm Height Thru Axle 0

CYCLONE Pro 700C Disc Brake Bike Frame 51cm Height Thru Axle 1CYCLONE Pro 700C Disc Brake Bike Frame 51cm Height Thru Axle 2CYCLONE Pro 700C Disc Brake Bike Frame 51cm Height Thru Axle 3



To Buyers

Welcome to TWITTER bike factory!
We are manufacturer and have been on this line for 10 years.
Our main products has Bicycle frame,Mountain Bike,Road Bike,e Bike,Bicycle wheels and other Bicycle parts ect.
We have enough experience to make best quality product and best customer service.
Thanks for the trust and support!



Warranty

European quality level

1) Quality is our number 1 focus for the entire team.

2) The design, injection, QA & packaging are all done in-house for efficiency and to standardized a high level of quality control.

3) Warranty is 2 years under normal using (not manmade damage).

4) All of carbon bike frames will be tested before shipping.

5) If you received some not working can show the pictures to us or send it back to us to repair or replace.
