TWITTER factory carbon fiber road bike CYCLONE disc brake 700C

Place of Origin China
Brand Name TWITTER
Certification CE,RoHs, ISO9001
Model Number CYCLONEpro -Disc RIVAL-22S
Minimum Order Quantity 1
Price Negotiable
Packaging Details 140*75*20CM/CTN 1PCS into 1CTN 120-125CTN/20GP Container 290-296CTN/40HQ Container
Delivery Time 7-15 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 30000pcs per month
Product Details
Product Name Carbon Fiber Road Bike Frame T900 Carbon Fiber,XC,EPS,Inner-Cable
Derailleur Handle RETROSPEC(SENSAH)-24S, Carbon Handle Or SHIMANO 105 Front Derailleur SRAM RIVAL-22S
Front&Rear Derailleur SRAM RIVAL Cranksets SRAM RIVAL, Hollow,34-50T
Cassettes SUGEK-11S, 11-30T Tire INNOVA, 700*40C, Skin-color Edge
Brake ZOOM, Flat-mount&cable Pull Hydr+PRO Float Disc 160/140 Size 45cm / 48cm / 51cm / 54cm
Leave a Message
Product Description

TWITTER Factory Carbon Fiber Road Bike T900 GRAVEL 22 Speed 40C



Compact Road Design

The science seems simple – smaller triangles create a stiffer, stronger bike. With this knowledge, TWITTER developed Compact Road Design, which essentially saw the toptube sloping down from the headtube, thus making the frame’s front and rear triangles smaller. Genius.



Adantages of Carbon Fiber Road Bike

1. Strong carbon fiber shell durable frame, strong and light weight.

2. the finished frame has better hardness, toughness, strength to weight ratio tightness and other qualities.

3. Significantly improve the stability and smoothness of the lamination and joint between the inner cavity of the frame.

4. Greatly reduce the excessive concentration of internal stress of the frame, the length of the finished frame life, stable quality

5. The finished frame has a smooth appearance.



Bike Model CYCLONEpro -Disc  RIVAL-22 Speed
Wheel Size 700*25C
Frame Height 45cm / 48cm / 51cm / 54cm
Bike Color BlackRed / Red / WhiteRed / Black / TiGray / CementGray / Silver / Blue / Yellow / Orange
Net Weight 8.5KG
Frame  high modulus Carbon fiber T900, XC, EPS, Inner-Cable, Cut&Gloss+UV laser colorful decals
Handelbar Sets TW, high modulus Carbon fiber, Integrated Handlebar&Stem(420*90mm),UV embossing water decals,full Inner-Cables
Seat Post High modulus Carbon fiber,Aero-Racing
Fork high modulus Carbon Fiber,700C,UV embossing decals, Disc&thru-axle 12×100mm
Derailleur Handle SRAM RIVAL-22S
Front Derailleur SRAM RIVAL
Rear Derailleur SRAM RIVAL
Cranksets SRAM RIVAL, Hollow,34-50T
Cassettes SUGEK-11S, 11-30T
Chain YBN-11S
Brake ZOOM, flat-mount&cable pull Hydr+PRO float disc 160/140
Hubs RS, Alu alloy,4-sealed Bearings,Slotted,F20*R24 holes,Disc&thru-axle F12×100_R12×142mm
Rim RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C
Tyre INNOVA, 700*25C, Skin-color edge

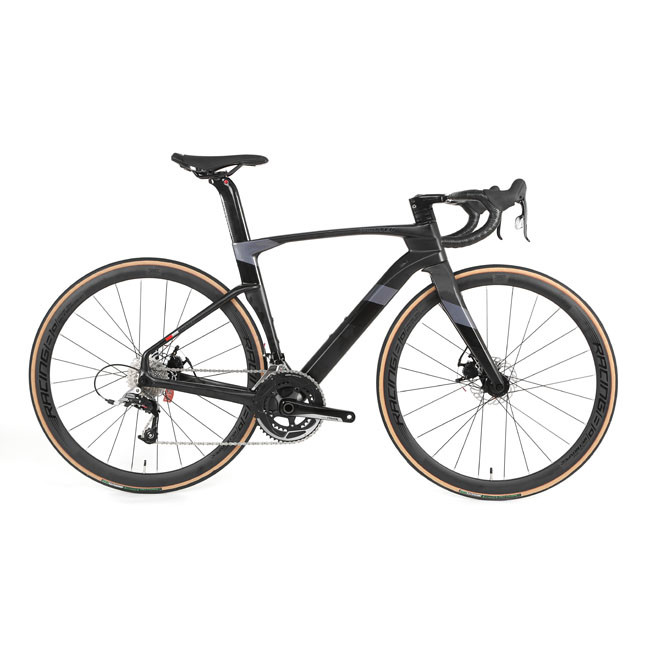

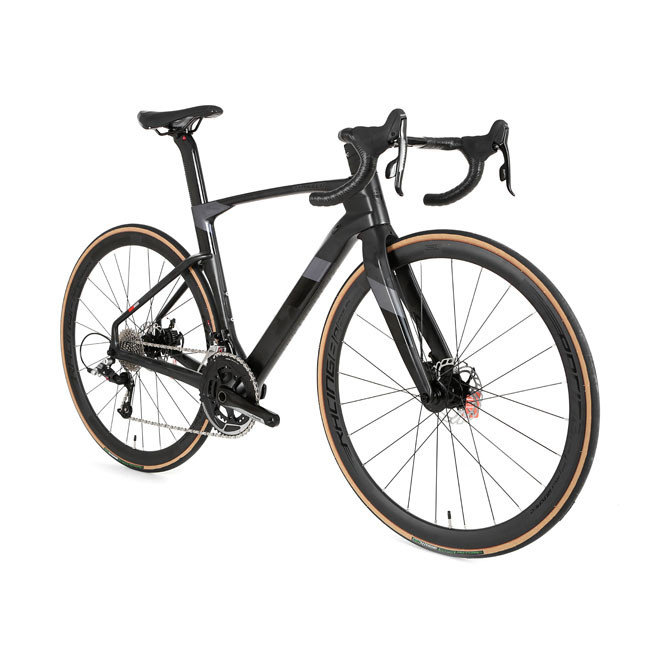

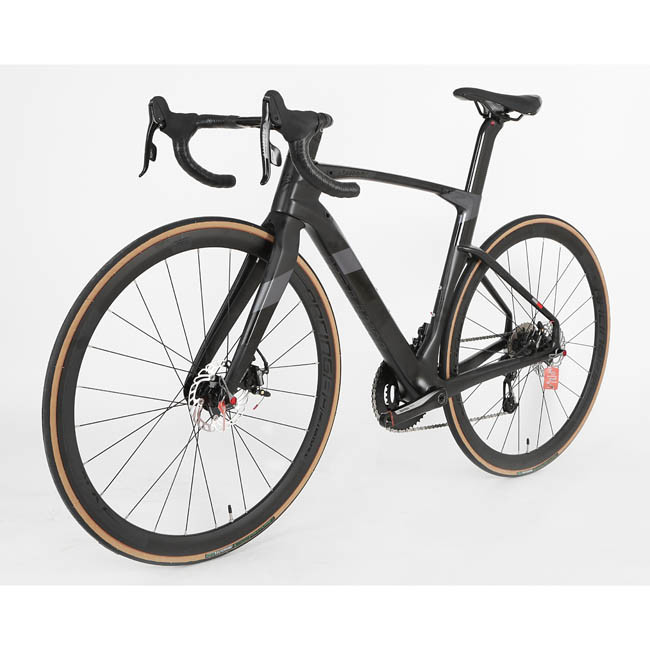

Different viewing angle of TWITTER CYCLONE Road bike

TWITTER factory carbon fiber road bike CYCLONE disc brake 700C 0TWITTER factory carbon fiber road bike CYCLONE disc brake 700C 1

Size from XS to L meet almost all the riders' height.

size A B C D E F G H I J K
BB Center to Top of Seat Tube Effective Top Tube Horizontal BB offset Chainstay Length Seat angle Head Angle Front Center Head Tube Length Fork Offset Reach Stack
  mm mm mm mm ° ° mm mm mm mm mm
XS - 45cm 450 505 -74 408 74.3 71.2 570 100 55 363 506
S - 48cm 480 520 -74 408 74.3 71.2 588 114 55 374 518
M - 51cm 510 538 -74 408 74.3 71.2 607 130 55 388 534
L - 54cm 540 550 -74 408 74.3 71.2 620 150 55 394 553

TWITTER factory carbon fiber road bike CYCLONE disc brake 700C 2TWITTER factory carbon fiber road bike CYCLONE disc brake 700C 3TWITTER factory carbon fiber road bike CYCLONE disc brake 700C 4
